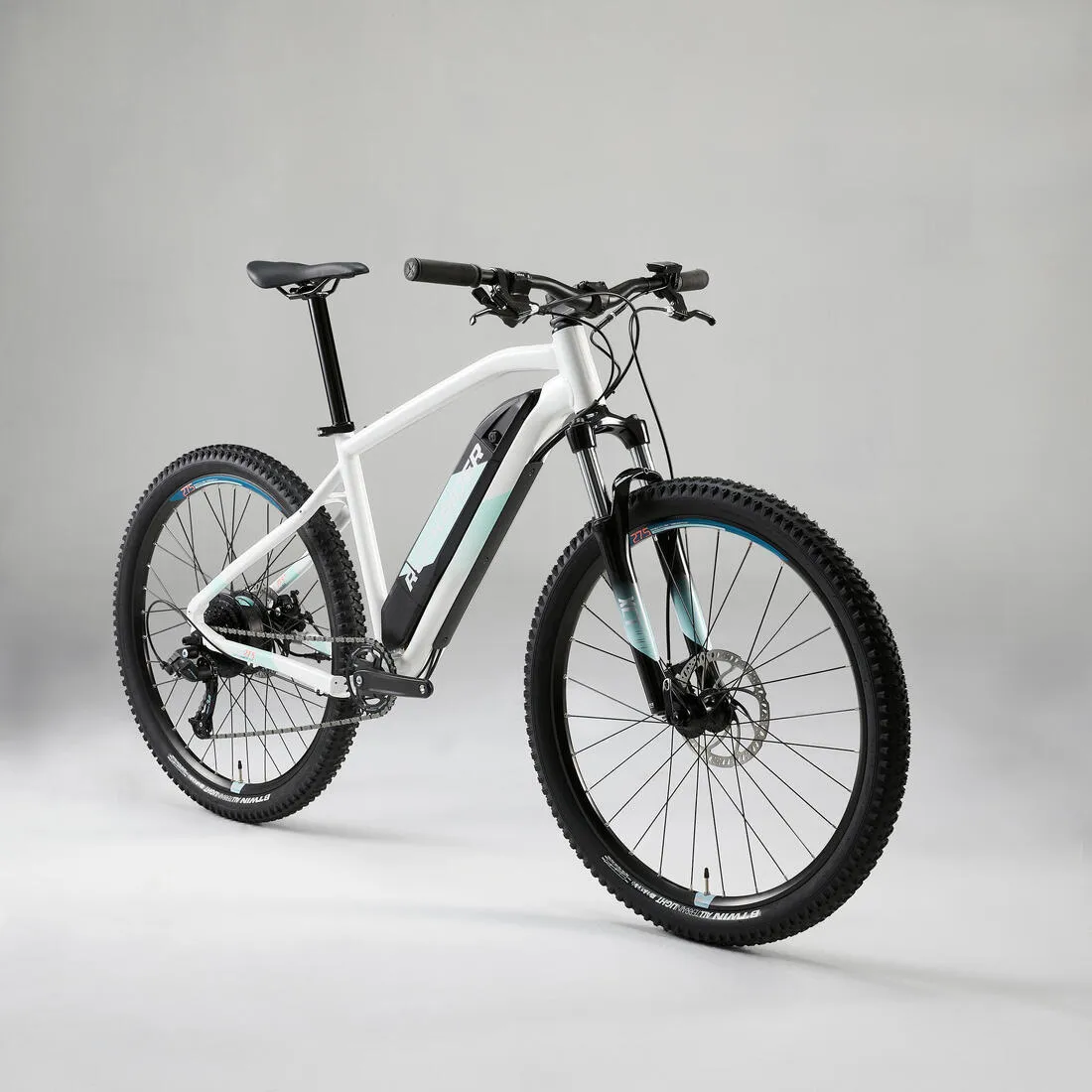

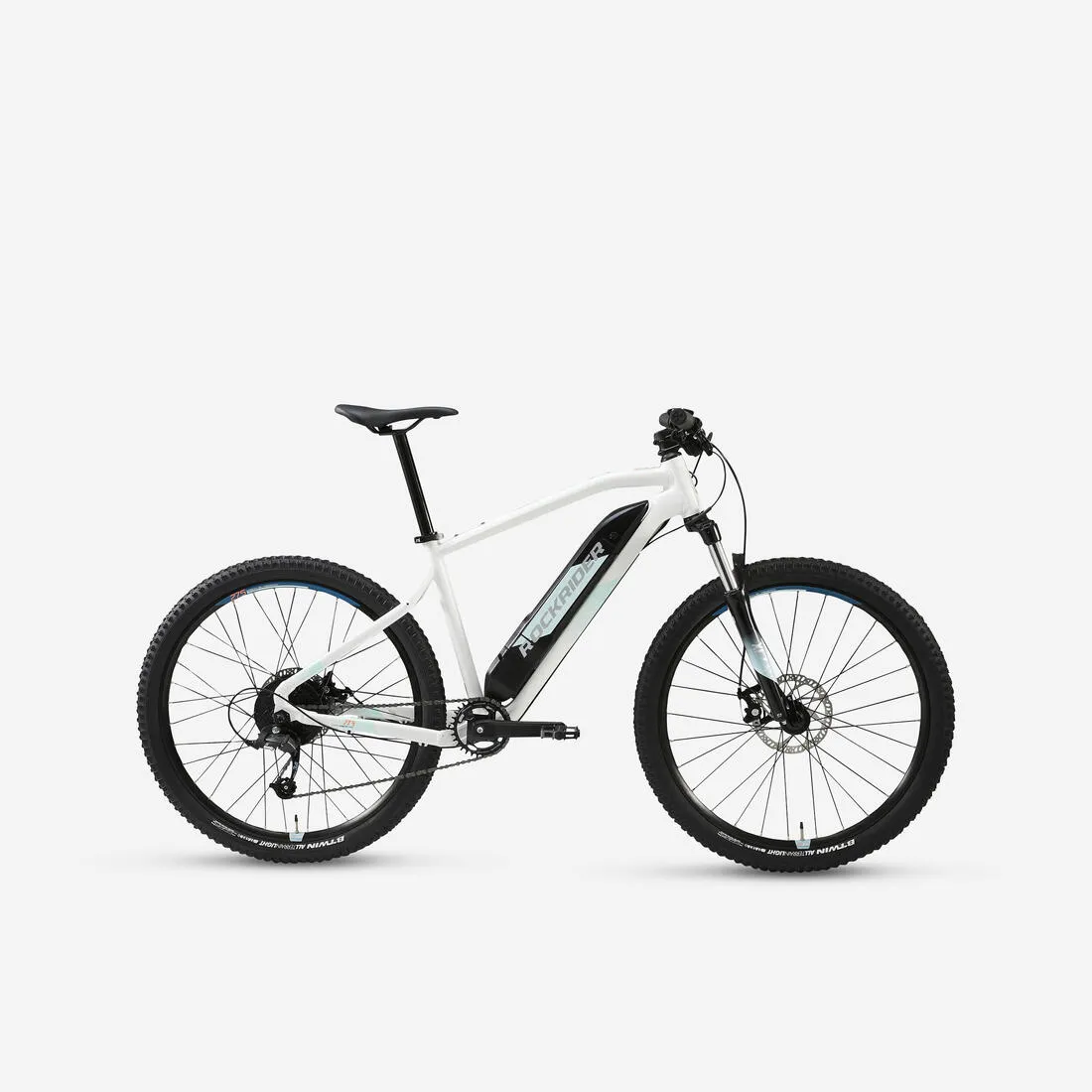

This electric mountain bike (EAMTB) is designed for all-terrain rides with a decent amount of climbing (hilly routes).
Motor

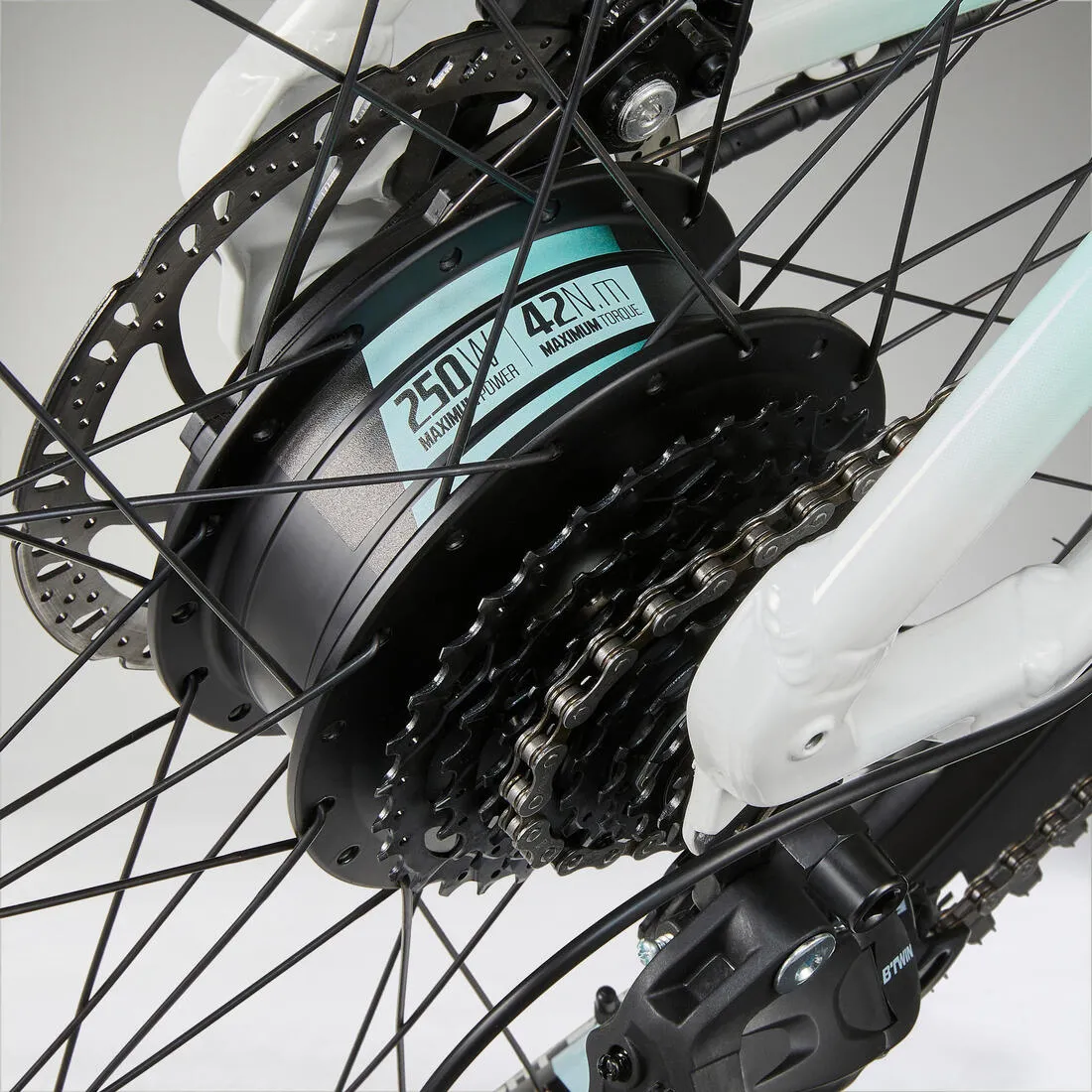

Motor co-developed with VISIONHub position (in the wheel)42 Nm torqueCadence sensorMax assistance: 250WThe electrical assistance cuts out over 25 km/h in accordance with European regulations

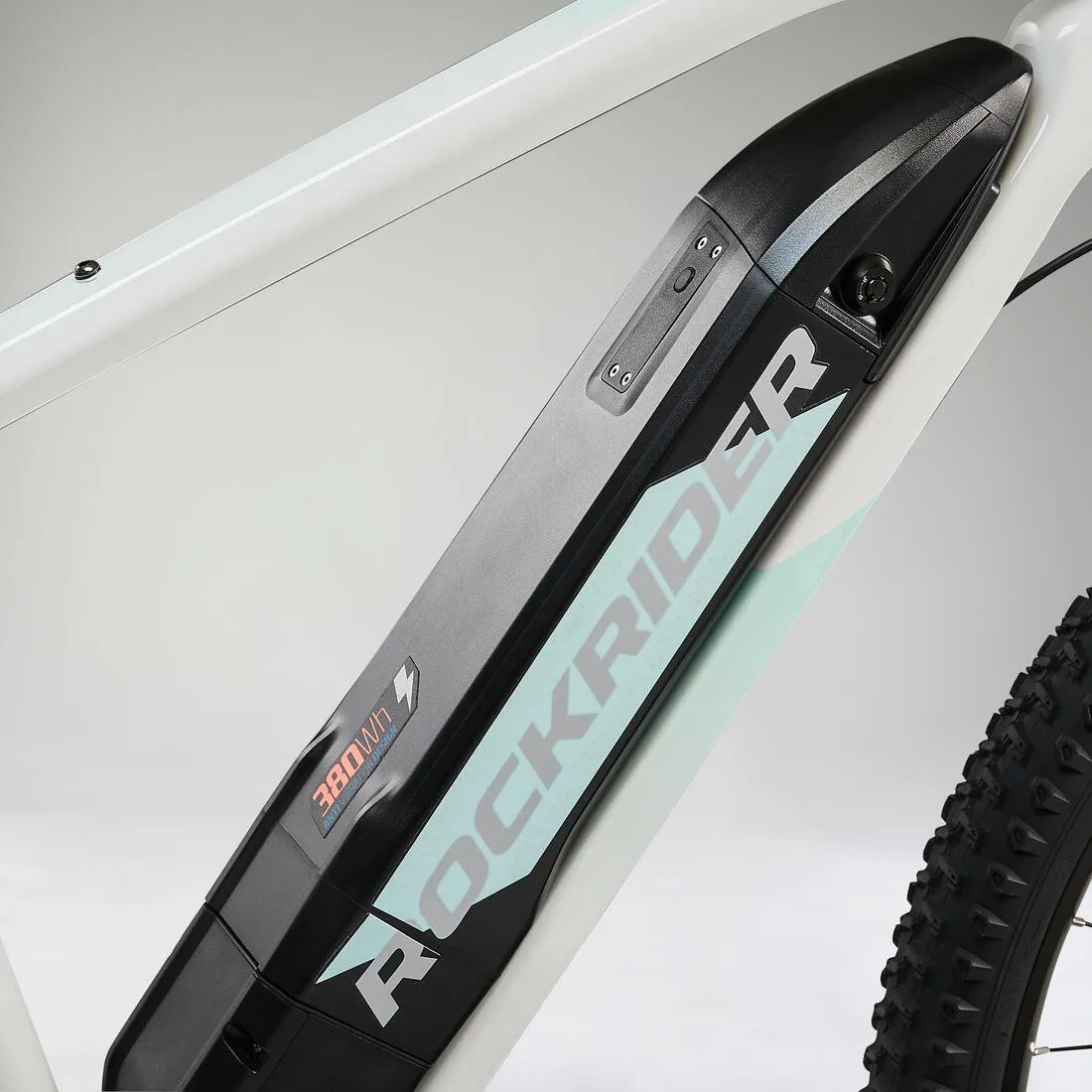

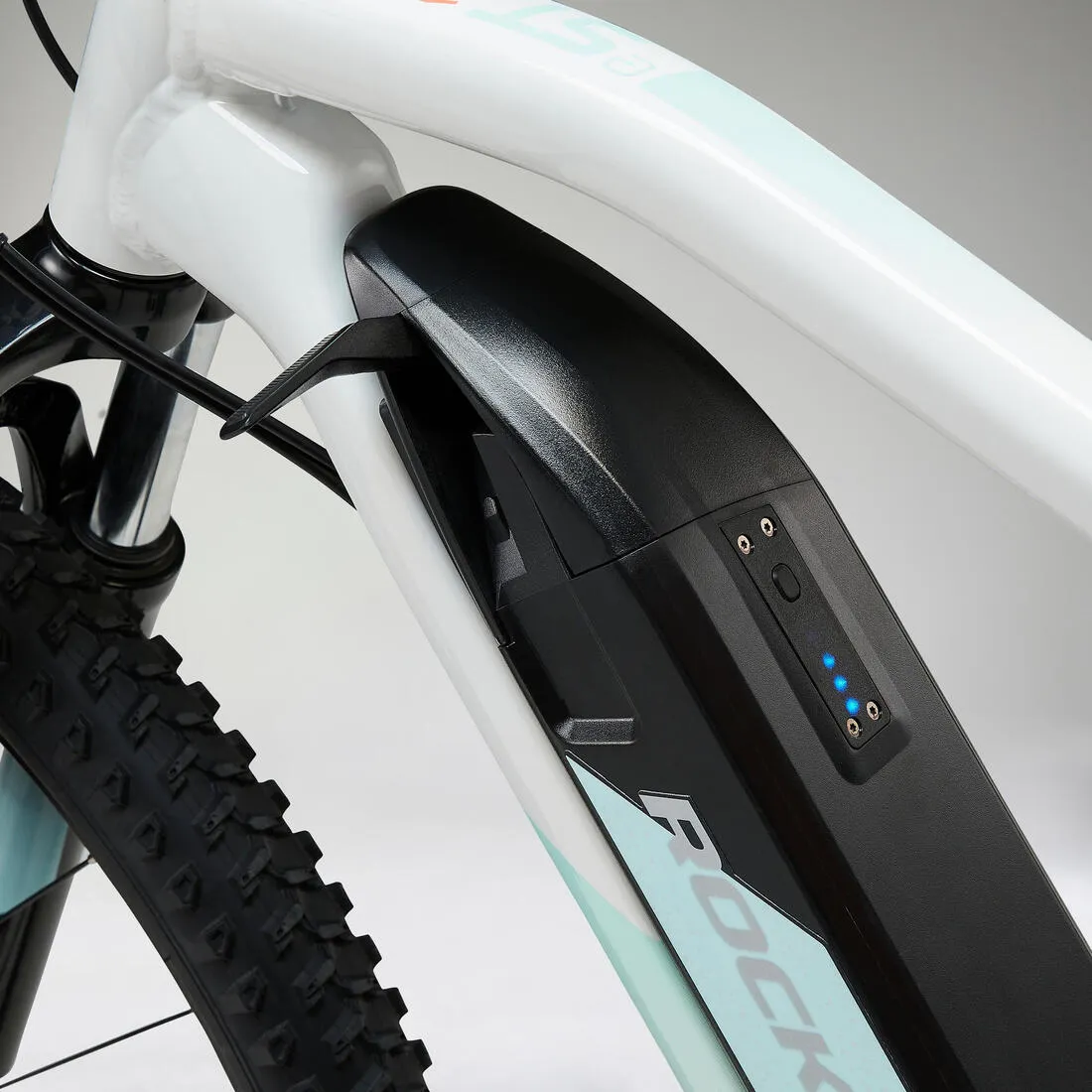

Battery

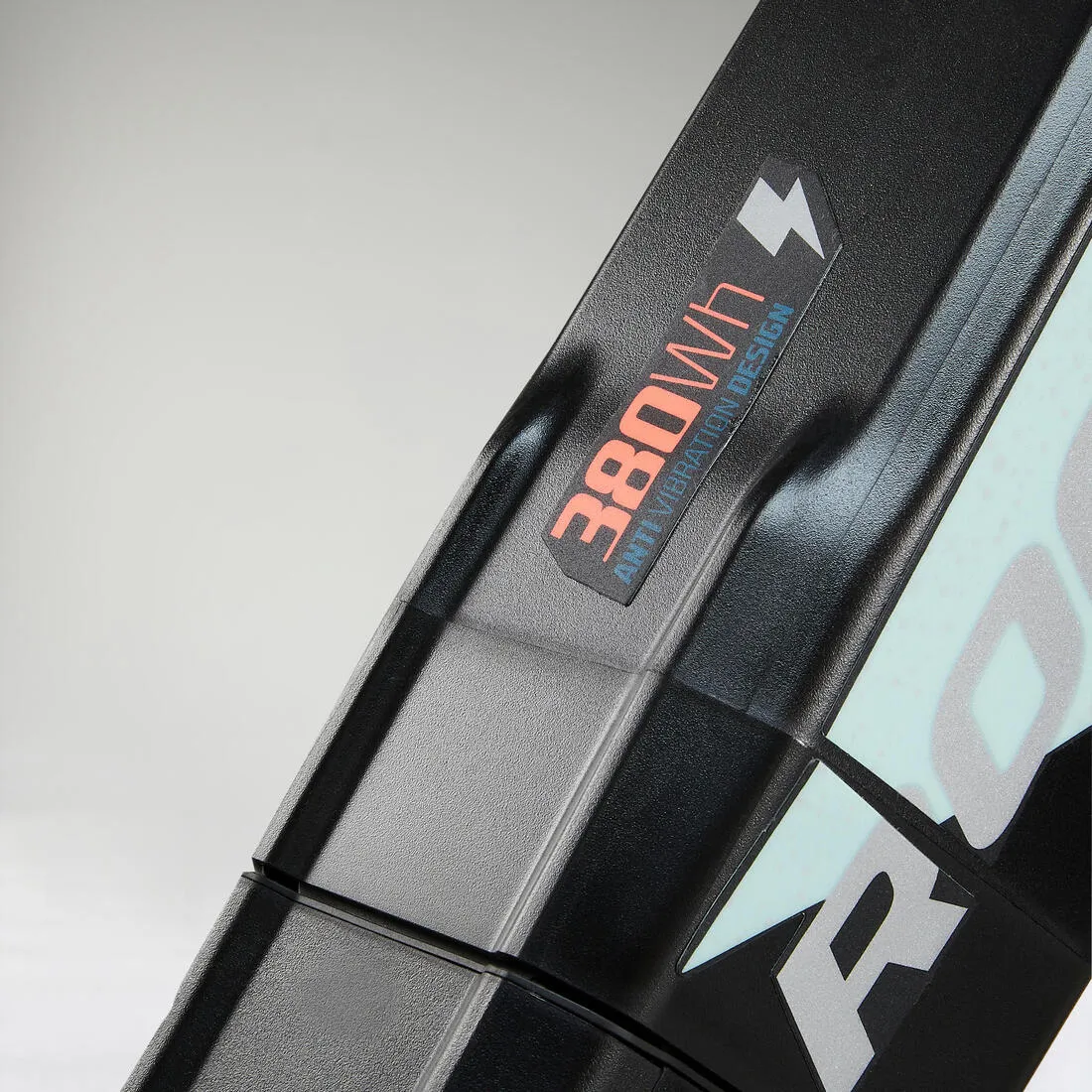

Samsung SDI or LGCapacity: 380 Wh

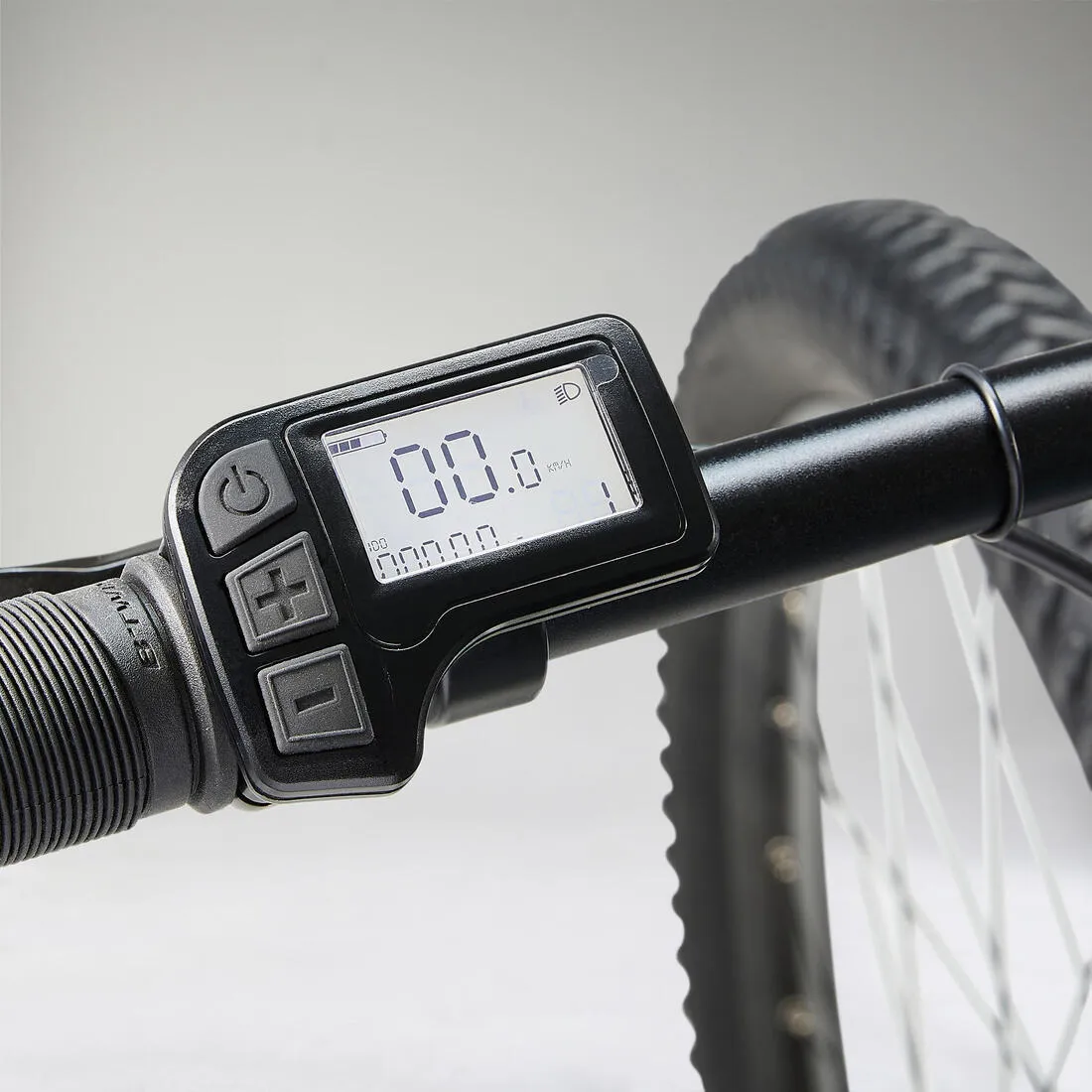

Display

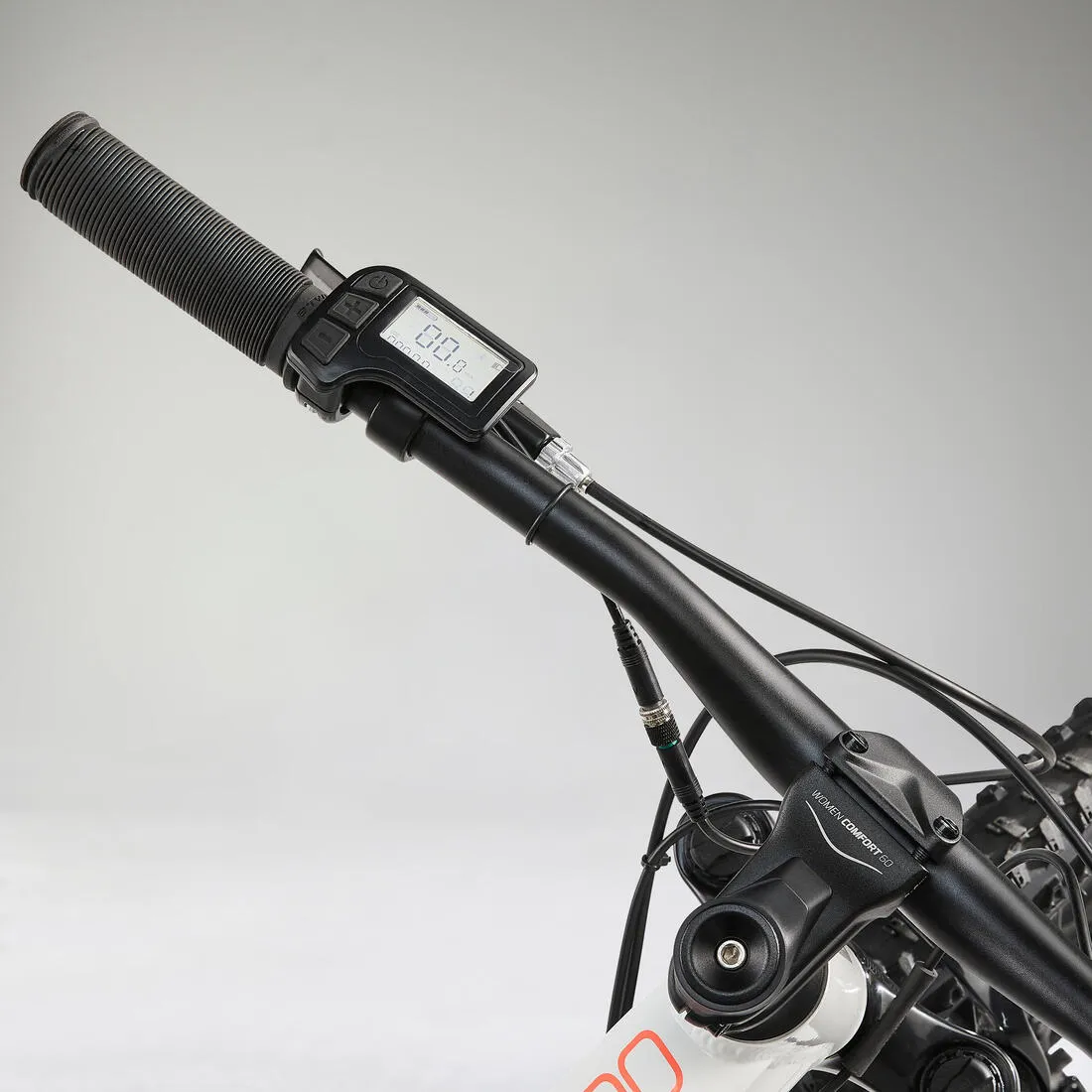

LCD control screen3 assistance modes: Eco / Standard / BoostStats displayed: Stopwatch / Current speed / Average speed / Maximum speed / Distance covered / Total distance / Battery level / Remaining battery range (in km) / Active assistance mode / Reset
Weight
S: 22.2 kgM: 22.3 kgL: 22.4 kgXL: 22.5 kgNet weight without pedals

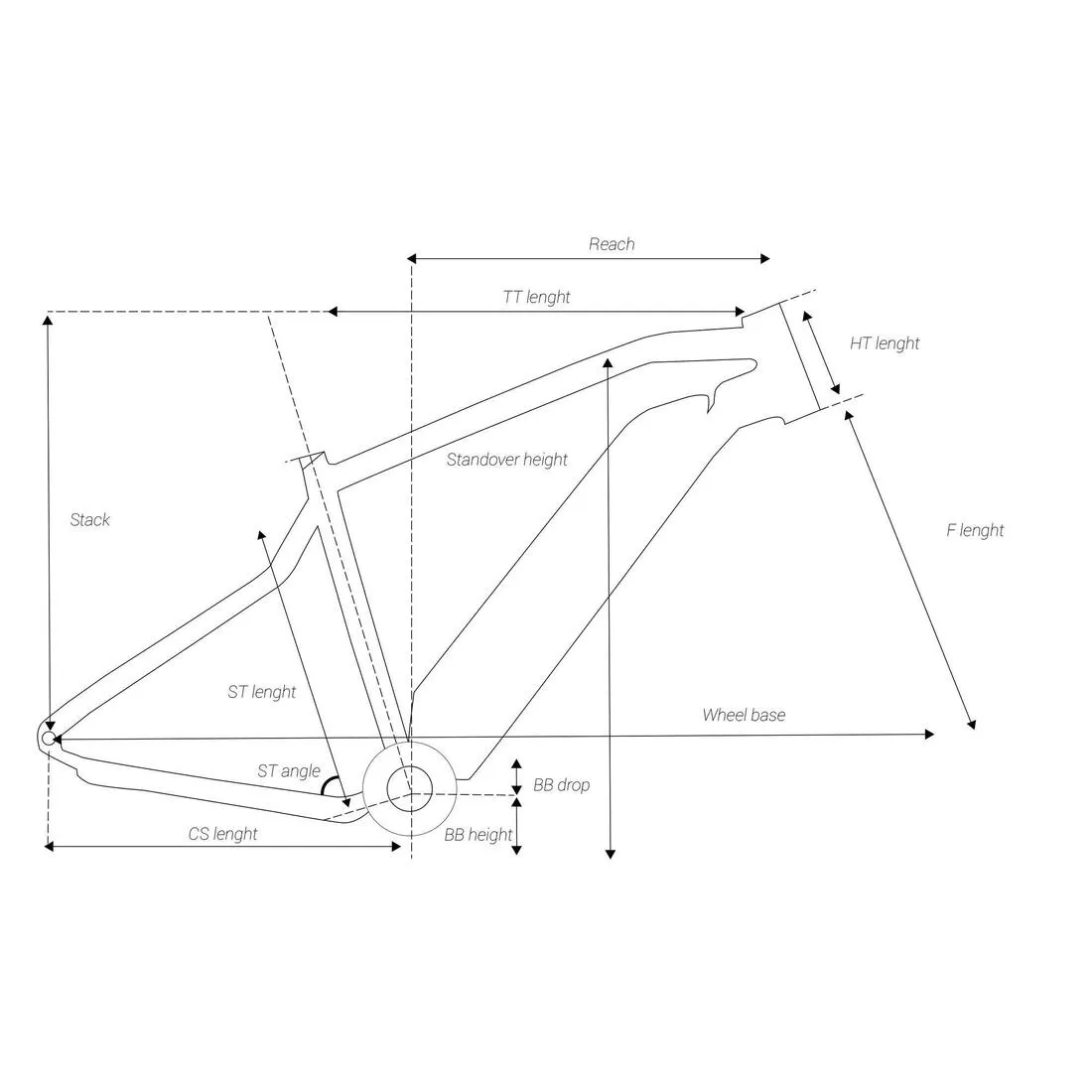

Frame

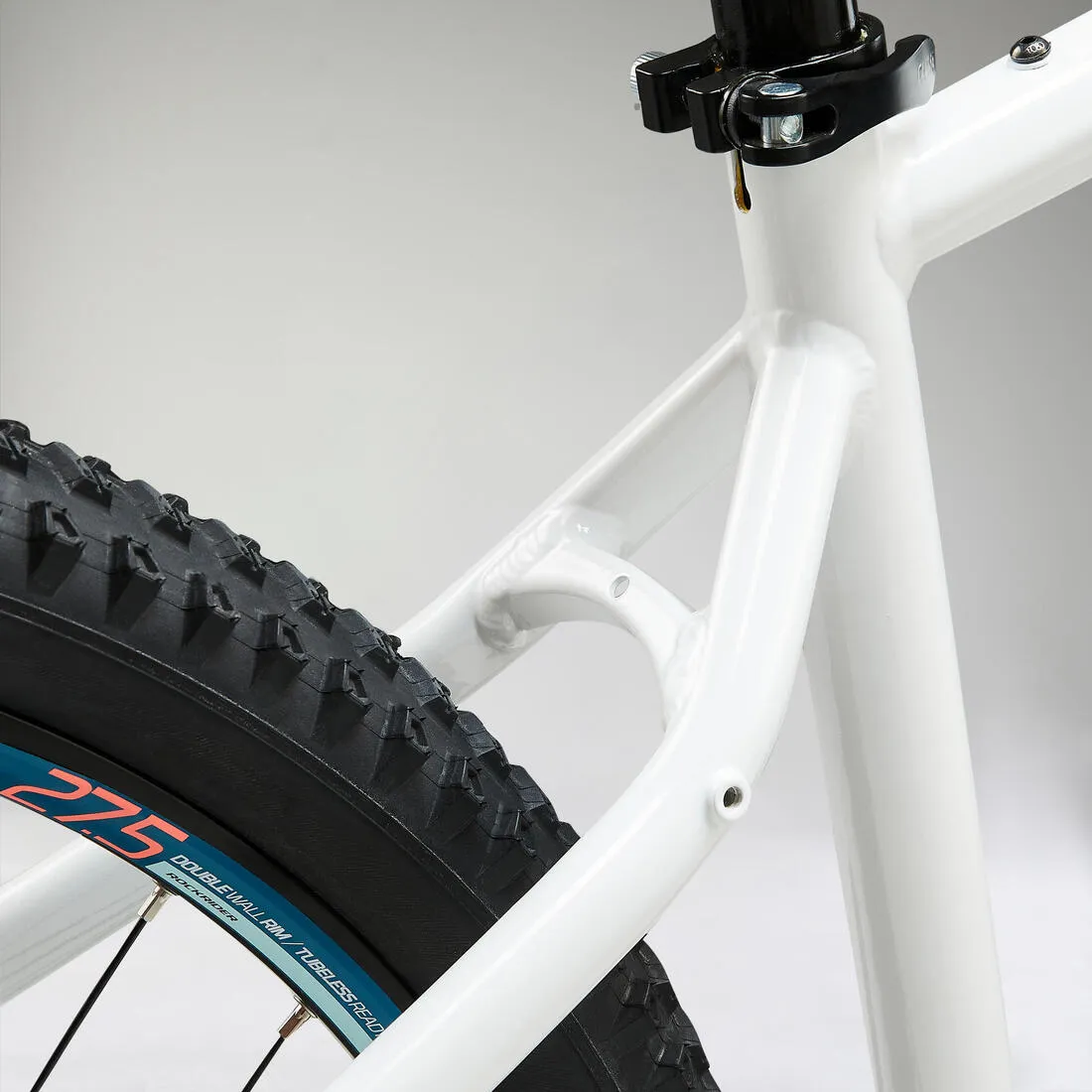

ROCKRIDER COMFORT GEOMETRY FRAME in 6061 aluminium with hydroformed tubesSeat tube diameter: 31.6 mmStraight head tube1 bottle cage mounting point
Drive train

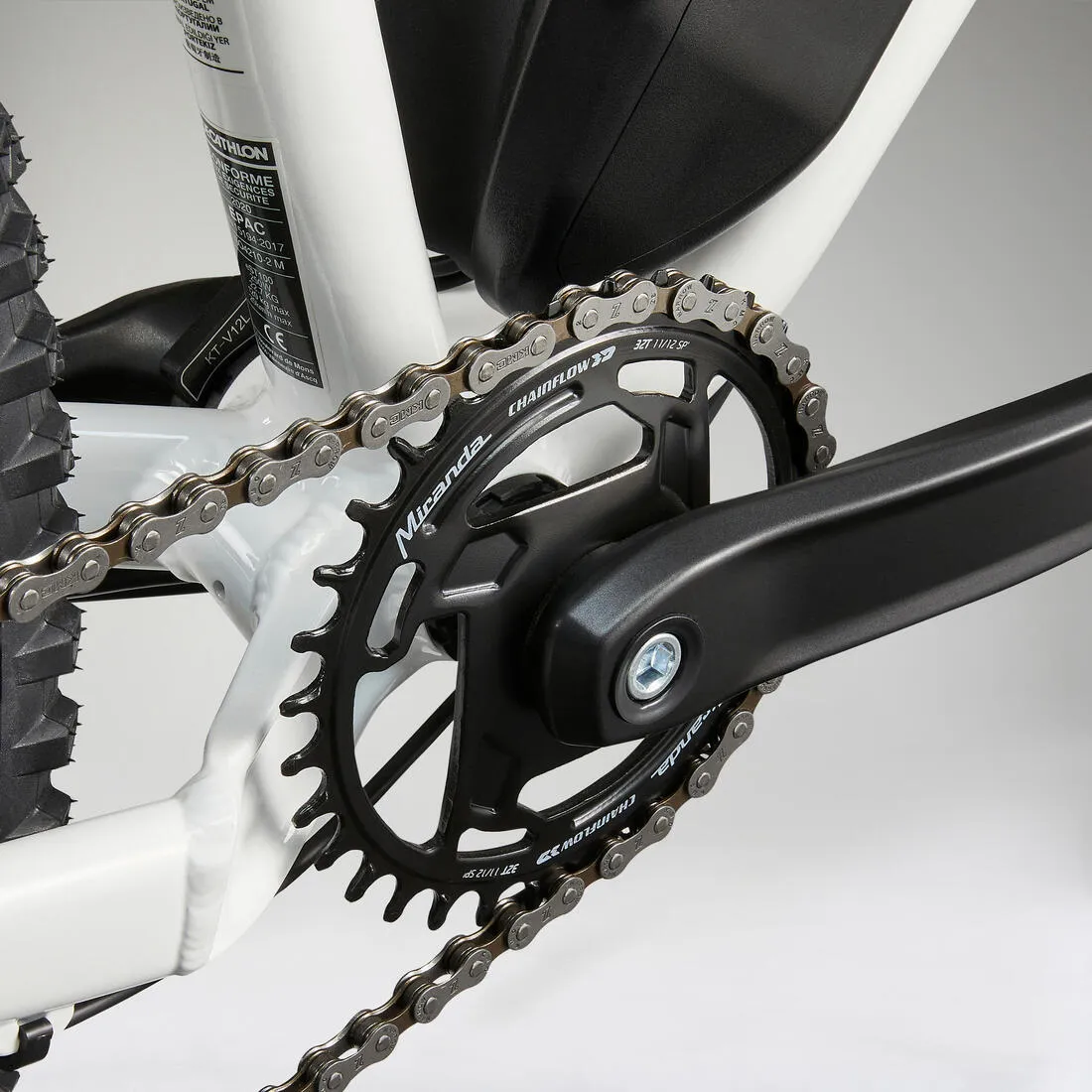

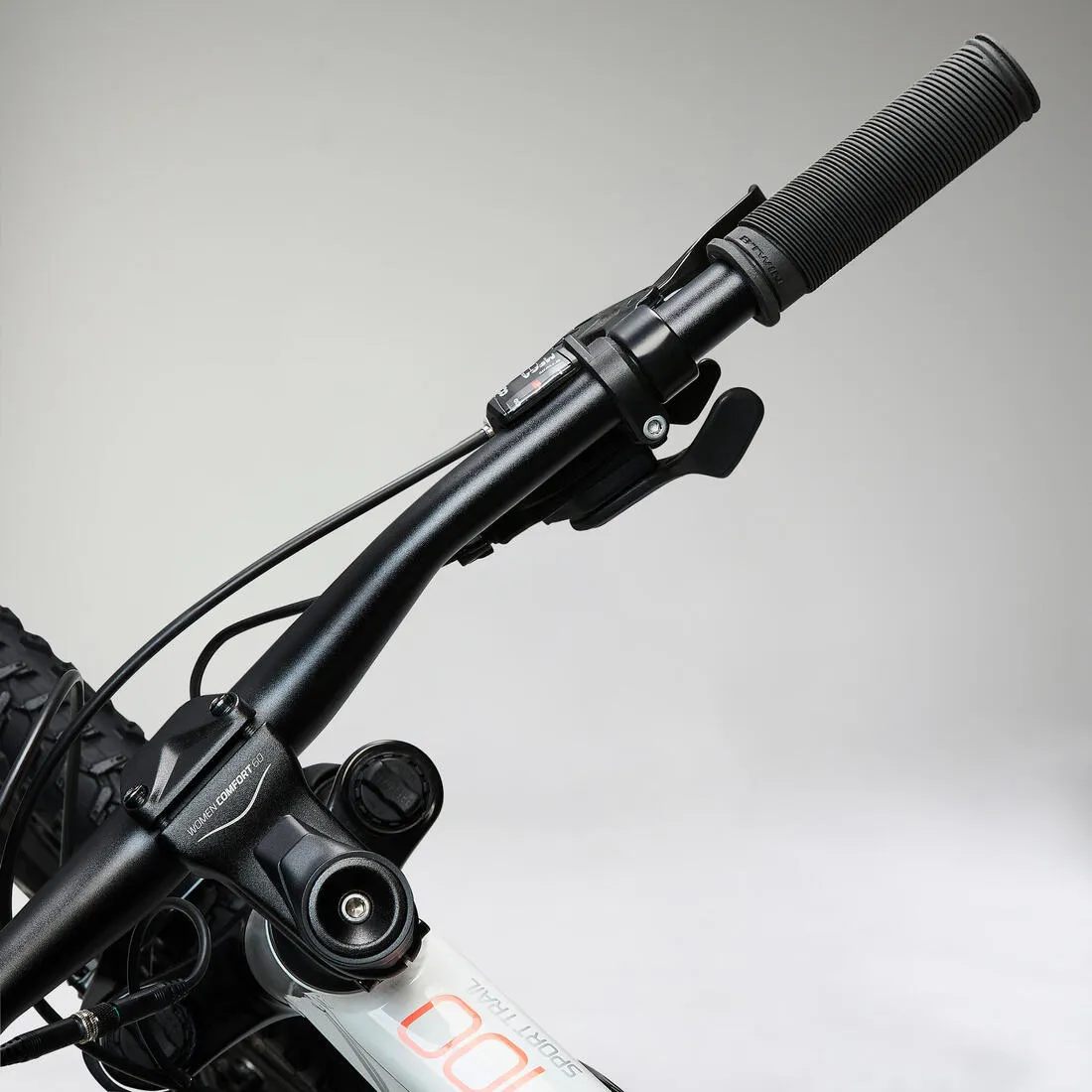

32 T chainring with chain guideMICROSHIFT MS25 8-speed rear derailleurCrank: 175 mmMICROSHIFT TS39 right shifter with speed indicatorMICROSHIFT H081 8-sprocket 11-34 T cassetteKMC Z7 chain

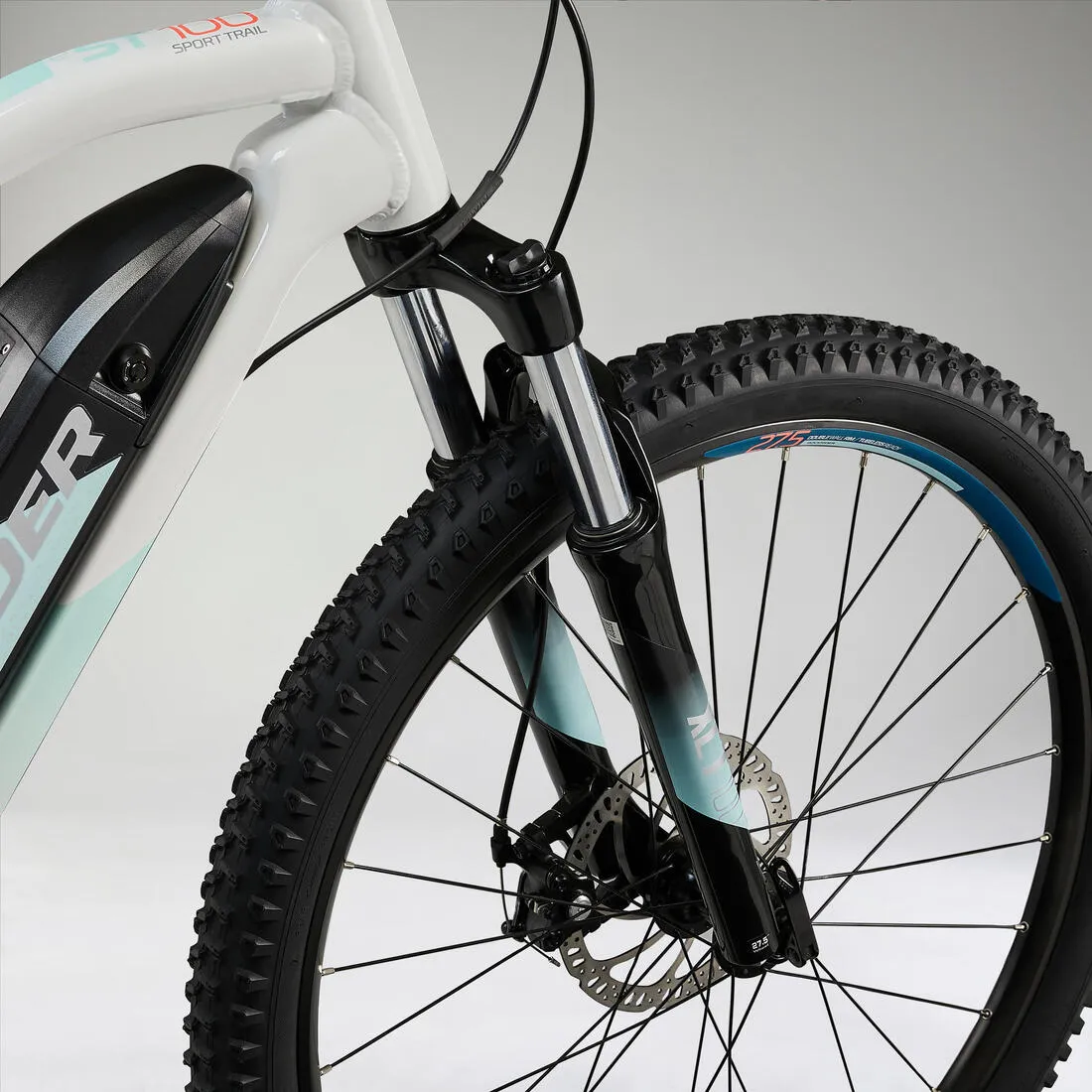

Suspension
SUNTOUR XCT 30 forkTravel: 100 mmDampers: 30 mmAxle: QRFormat: 9 x 100 mm
Wheels
Rockrider Tubeless Ready (needs tubeless tyres, special Presta valves and tyre sealant)27.5"", compatible with wide tyres: up to 2.5""23 mm (width between hooks),28 spokes at the front and 36 oversize spokes at the rear6-bolt discFreehub: HG
Brakes
Tektro TKD68Mechanical disc brakes1 piston180 mm front and rear
Riding position
ROCKRIDER SPORT ""oversize"" 720 mm wide alu handlebarThe Rockrider stem is 70 mm (size S), 80 mm (size M/L), or 90 mm (size XL) and can be raised to 5 adjustment intervals: 0mm, 7.5mm, 15mm, 22.5mm, 30mm.ROCKRIDER SPORT ""soft touch"" grips
Saddle / Seat post
ROCKRIDER ERGOFIT EVO saddleAluminium 31.6 mm seat post
Tyres
ROCKRIDER ALL TERRAIN LIGHT (30 TPI) wide 2.2"" tyres
PEDALS
Rockrider 520 Grip resin flat pedals
Accessories
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.The frame is compatible with:- front and rear mudguards- stand- bottle cage (on the top tube)- saddle bag- rear pannier rack (to be mounted on a stay or special rack for wide bikes with 150 mm rear wheel axles)- child seat
This electric mountain bike is designed for all-terrain rides with a decent amount of climbing. Perfect for discovering the thrill of MTB the smart electric assistance helps you find your pace.
Cocoa Flavour
Ride up to 50 km on fairly flat ground.
Power
Tackle your first slopes with the wheel motor's 42 Nm torque.
Milled Fennel
Comfort for women: saddle, adjustable fork, raised position, closer brakes
Smooth pedalling
Smart assistance and cadence sensor to preserve the feel of mountain biking
Control
Good control with the 2.2"" tyres, 620 mm handlebars and 100 mm coil fork.
This electric mountain bike (EAMTB) is designed for all-terrain rides with a decent amount of climbing (hilly routes).
